LED light is everywhere now — in the bulbs overhead, the screen you're reading this on, the dashboard in your car, and the glowing sign on the wall. Behind every one of them is the same small component: an LED chip. This is a deeper look at what LED chips actually are, the main types you'll come across, how they differ, and the wide range of lighting they power.
What Is an LED Chip?
An LED chip is the core light-emitting part of any light-emitting diode. It's a small semiconductor device — made from compounds of materials such as gallium, indium and nitrogen — that gives off light when electricity passes through it, a process called electroluminescence. The specific material inside the chip determines the color of light it produces, which is why LEDs can span everything from warm white to deep blue without filters.
On its own, a chip is tiny and needs a circuit, a housing and often a lens or diffuser to become a usable light. How the chip is packaged onto that circuit is what separates one LED product from another.
SMD vs. COB: The Two Main Packaging Types
Most LED chips are built in one of two ways:

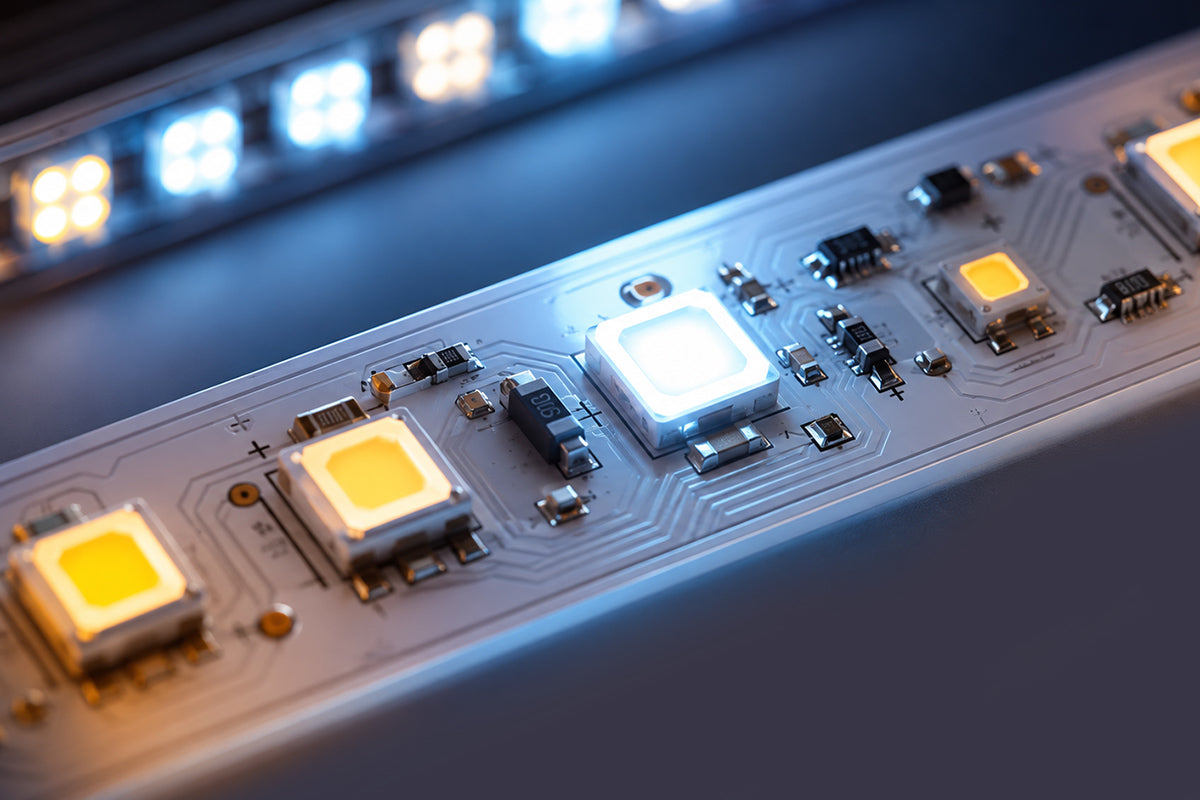

- SMD (Surface-Mount Device). The chip is mounted directly onto the surface of a printed circuit board. SMD chips are compact, versatile and easy to arrange in rows or grids, which makes them the standard choice for strips, panels and displays.
- COB (Chip on Board). Many chips are packed onto a single substrate, so the light source behaves as one dense, even block. COB is used where you want intense, uniform output from a small area — spotlights, downlights and high-output fixtures.
An SMD chip is usually a small rectangle or square, often just 1–5 mm across, mounted flat with its light-emitting area covered by a clear or PC lens. Instead of traditional wire leads, it has metal contacts or pads on its side or base that solder straight onto the board — which is exactly what lets manufacturers line them up so tightly.
Common LED Chip Types
SMD chips are named by their dimensions in millimeters, and a few types dominate everyday lighting:
- 2835 — 2.8 × 3.5 mm. Extremely common in strips and panels for its balance of efficiency, brightness and low cost.
- 3030 — 3.0 × 3.0 mm. Handles higher power and heat, favored where more output per chip is needed.
- 5050 — 5.0 × 5.0 mm. Often houses three diodes in one package, which is how a single chip can mix red, green and blue for color-changing light.
The takeaway: a larger or multi-diode package generally means more output or more color control, while smaller single-diode chips like the 2835 win on density and cost. The right chip depends entirely on what the light needs to do.
What LED Chips Power
Because chips are small and can be arranged freely, the same basic component shows up in very different forms:
- Strips and tape light — rows of SMD chips on a flexible board, used for accent and under-cabinet lighting.
- Panels and displays — dense grids of chips for screens and even-glow lighting.
- Bulbs and tubes — clusters of chips packaged to replace older incandescent or fluorescent fixtures.
- Automotive and instrument lighting — compact chips for headlights, dashboards and indicators.
- Flexible LED neon — a tight row of SMD chips sealed inside a bendable silicone tube, which diffuses the individual points into one smooth, continuous line. It's how modern LED neon signs recreate the classic neon glow using chips instead of gas-filled glass.
That last example is a good illustration of how much the packaging matters: the very same SMD chips found in a strip light, once housed in a shaped silicone body, become something that looks nothing like a strip at all.
What All LED Chips Have in Common
However they're packaged, LED chips share the traits that made LED technology take over lighting: high energy efficiency, long service life, low heat output and instant-on brightness with no warm-up. They contain no mercury and are far more durable than the filament or gas-based lighting they replaced — which is why chips now sit behind nearly every light source we use, from a desk lamp to a piece of LED neon art on the wall.
LED Chips: FAQ
What are LED chips made of?
They're semiconductor devices built from compounds of materials like gallium, indium and nitrogen. When current passes through the semiconductor, it emits light — and the exact material determines the color.
What's the difference between SMD and COB?
SMD mounts individual chips onto a circuit board, ideal for spreading light across strips, panels and displays. COB packs many chips onto one substrate for dense, even output from a small area. SMD favors flexibility and arrangement; COB favors concentrated brightness.
What's the difference between an LED chip and an LED bulb?
A chip is the raw light-emitting component. A bulb is a finished product — one or more chips packaged with a driver, housing and base so it fits an existing fixture. The chip does the lighting; the rest of the bulb makes it usable.
Which LED chip is used in flexible neon signs?
Flexible LED neon typically uses small SMD chips such as the 2835 or 3030, lined up closely on a flexible strip inside a silicone tube. The tight spacing plus the diffusing housing turn many separate points of light into the seamless line people recognize as neon.
The Bottom Line
For something so small, the LED chip does an enormous amount of work. Understanding the basics — what it's made of, how SMD and COB differ, and how chip choice shapes the final product — makes it much easier to tell good LED lighting from bad, whether you're buying a strip, a bulb, or a piece of flexible LED neon.
